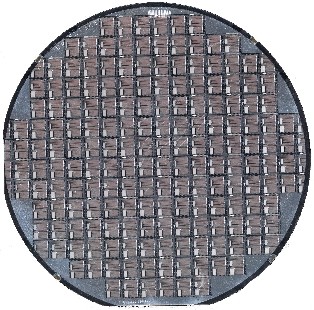

WAFER




Specifikacija Wafer-ja





Premer (mm)

 25,4

 50,8

 76,2

 100,0

125,0

150,0









Tip in elementi dopiranja

 n-type

  • P   - Phosphorus
  • Sb - Antimony
  • As - Arsenic doped

 p-type

  • B - Boron









Orientiranost

(100)

(110)

(111)





Toleranca orientiranosti

standard : +/- 0,5°
upon request : until +/- 0,01°





Odmik od orientiranosti

upon request (up to 25°)









Upornost

Cz : From 1 milliohmcm to 150 Ωcm
FZ : up to 10 kΩcm





Debelina



1"

2"

3"

4"

5"

6"

standard (µm )

250

275

380

525

625

675

tolerance +/- (µm )

15

25

25

20

20

20









Površina

As Cut

Lapped

Etched

SSP

DSP





Premer *

1"

2"

3"

4"

5"

6"





Particle count

10-25

10-25

10-25

< 10

< 15

< 15





TTV Std (µm) *

7

12

10

10

10

10





TTV min (µm) *

3

3

3

2

3

3





Bow (µm)   *

< 30

< 30

< 30

< 40

< 40

< 40







Roughness (Ra)

On polished surface : Less than 1 nm





Flatness

On polished surface : Less than 1 µm





Laser marking

Upon request



SEMI STANDARDS

All other specifications comply with SEMI STD (packaging, product identification, ...)
